    Serviform IDEA

    Serviform IDEA
    Price on request

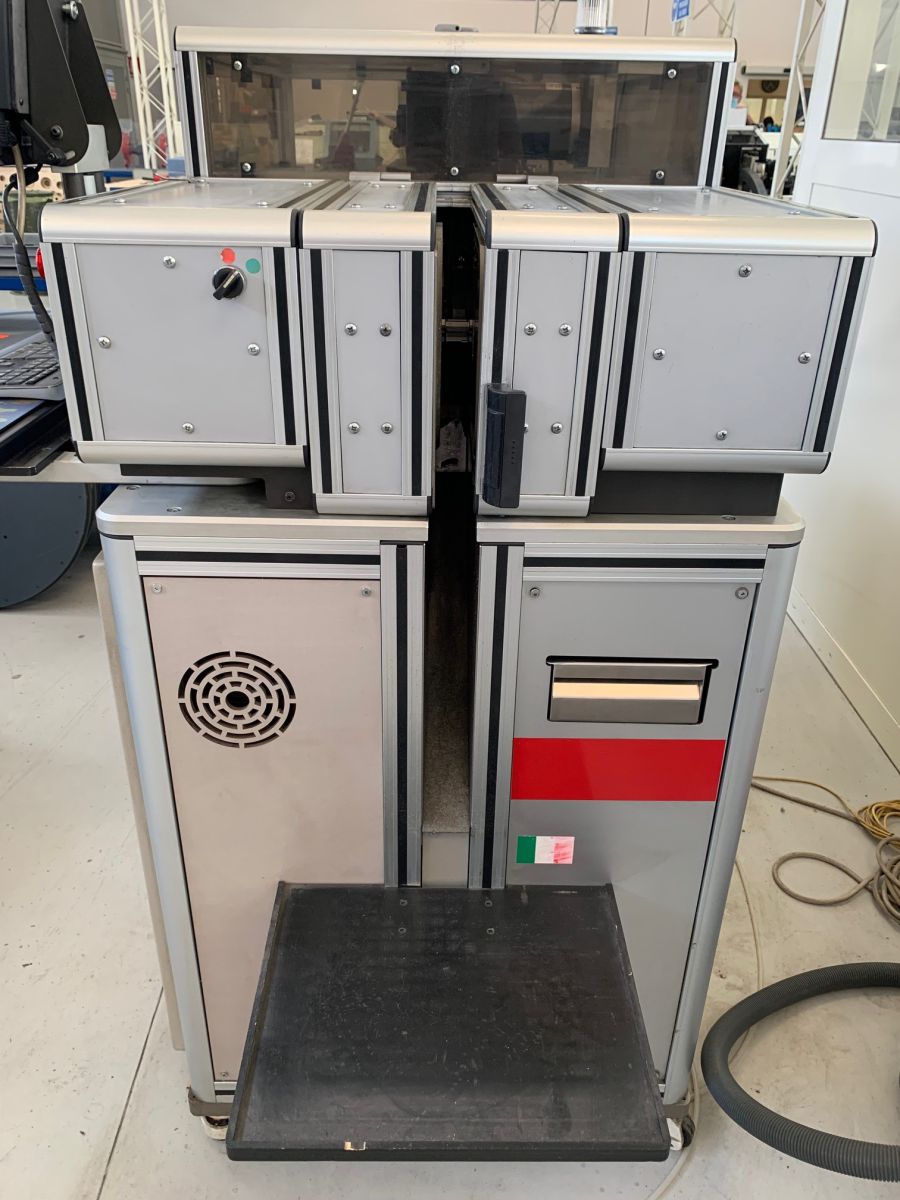

    Serviform Idea
    Age 2009
    PC  "Idea 2019" software
    2 PT bending unit
    3 PT bending unit
    Revolver cartridge for nicking 0,2 - 0,3 - 0,4mm
    Bridges cartridge 3 - 4 - 6 mm.
    cut cartridge(with and without lipping)
    6 rule holders

    General information about Serviform Idea (can be different compared to the machine offered)

    The SERVIFORM IDEA machine is the most advanced fully automatic die making machine available on the market.

    The IDEA machine will offer you:

    • Straight cut / lip
    • Bridging
    • Broaching
    • Bending
    • Perforating Rule
    • Cut / Crease Rule
    • Nick Grinding

    This automatic rule processing machine has been designed to suit the highest quality die makers, it features all the operations a modern die maker requires.

    IDEA can process steel rule from 18mm to 32mm high in a thickness of 1.5pt, 2pt, 3pt and 4pt.

    Software

    All SERVIFORM equipment, including the SERVIFORM IDEA rule processor are driven by modern software based on Windows XP, the main features of this software are:

    • Ease of use
    • Perfect interface-ability with existing networks
    • Extreme flexibility

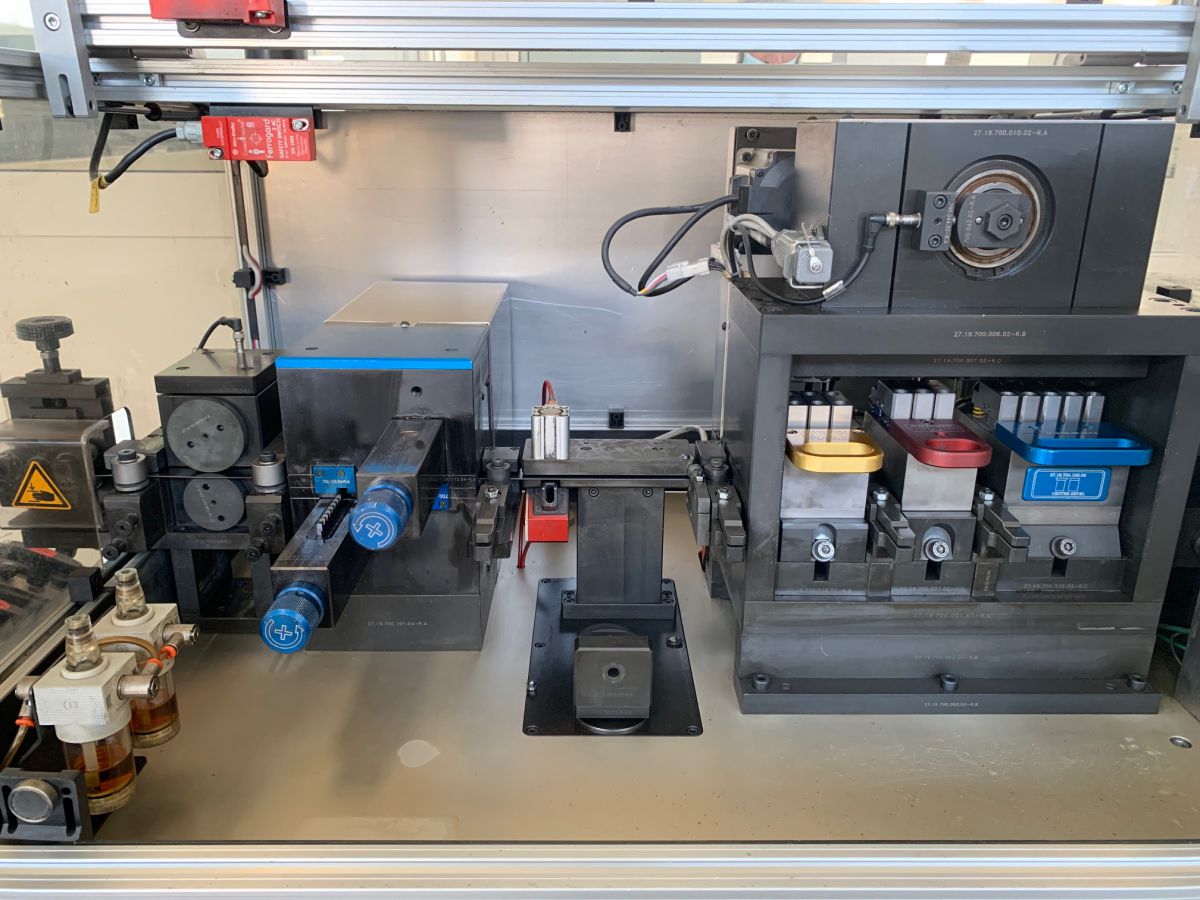

    All operations are electronically or pneumatically driven. In the punching section multi-operational cartridges can perform all the required die making functions i.e. cutting, lipping, bridging etc

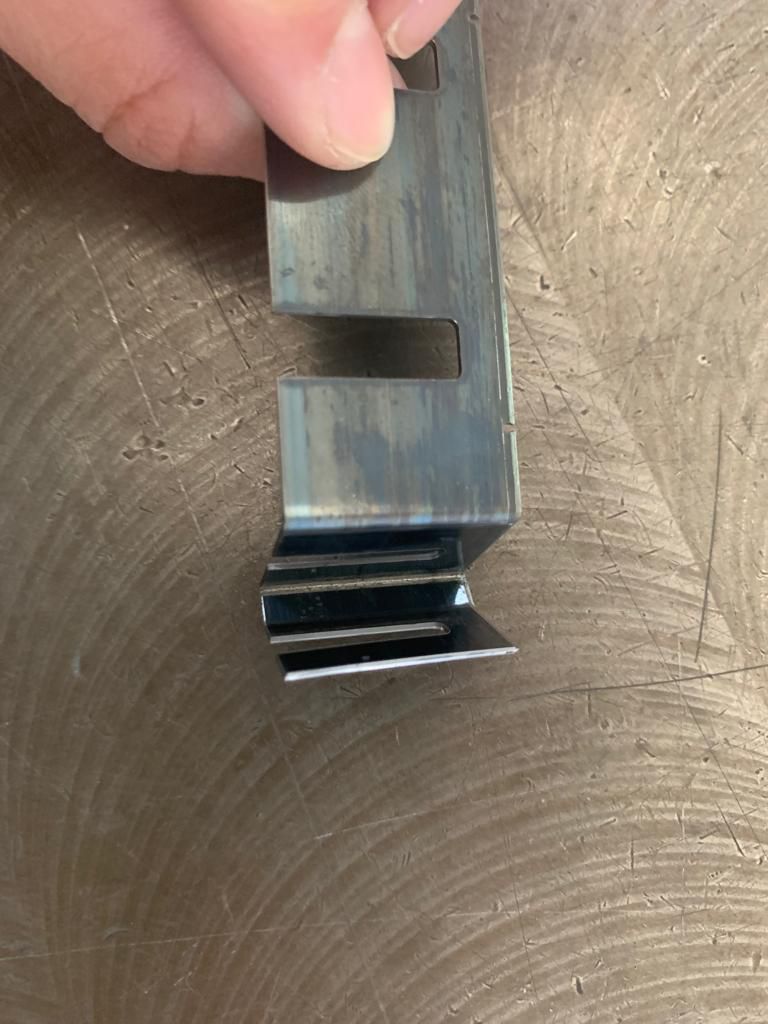

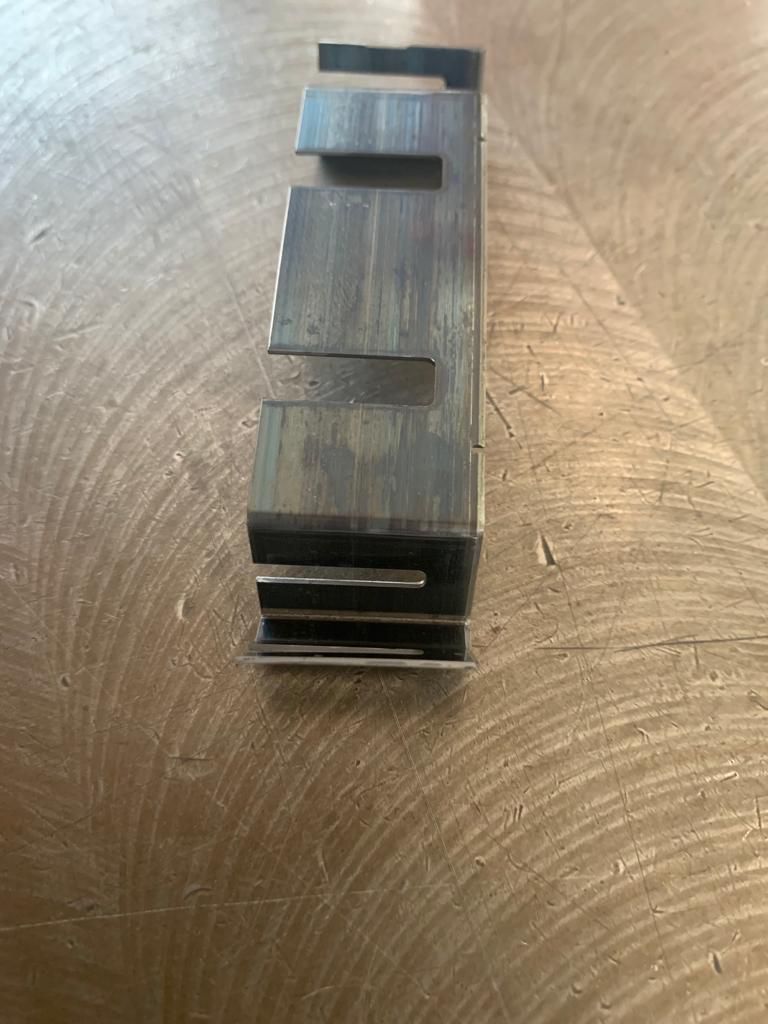

    Bending

    SERVIFORM have developed a new and unique bending tool structure (patent pending), this allows super-quick changing from one pointage to another and eliminates any bending limitations.

    Broaching

    The latest IDEA machines are equipped with a completely re-designed dual operation in-line broaching unit for faster, cleaner and burr-free broaching.  The IDEA broaching tool itself and its depth is be easily adjusted through the software.

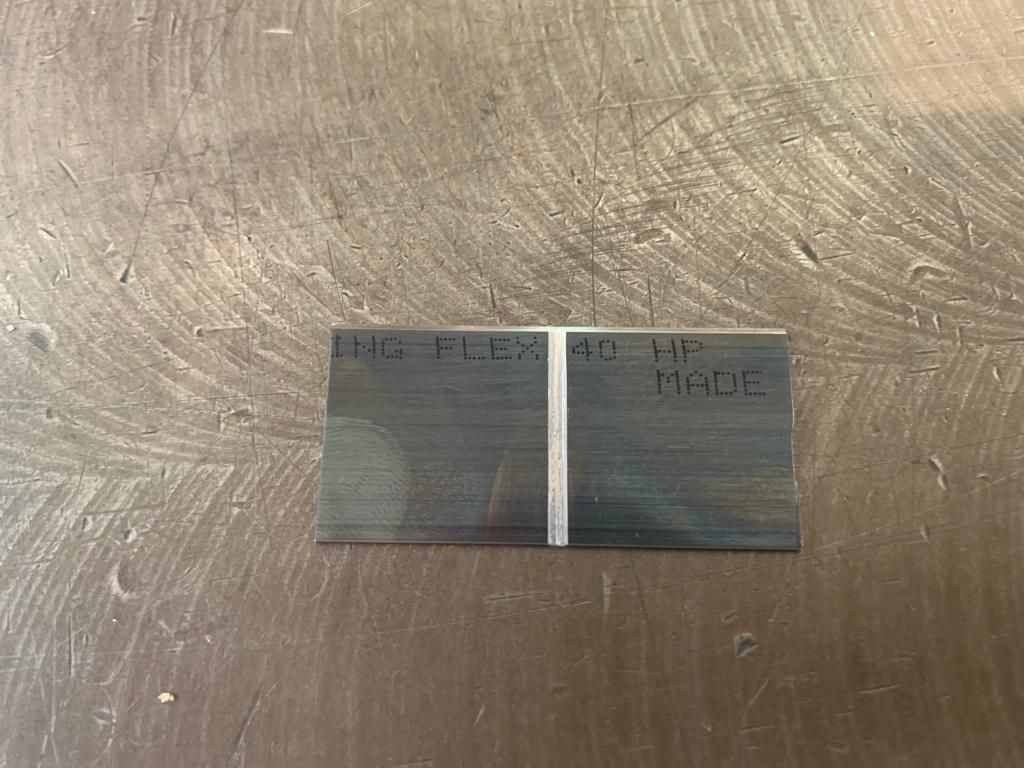

    Nick Grinding

    The SERVIFORM IDEA rule processing machine is now equipped with a revolutionary nick grinding unit. It offers perfect geometric, uniformed, burr-free nicks with a constant depth all in a straight line process.  Four electric spindles equipped with the new Ultra nick nicking tools are driven by the machine control software. The position of the nicks is automatically imported from the CAD drawing and a powerful vacuum suction system guarantees absolutely clean operations.

    Technical specification

    Article number 33108
    Condition
    condition(4) Running condition, good
    In production
    Yes
    Availability
    On requestMarch/April 2022

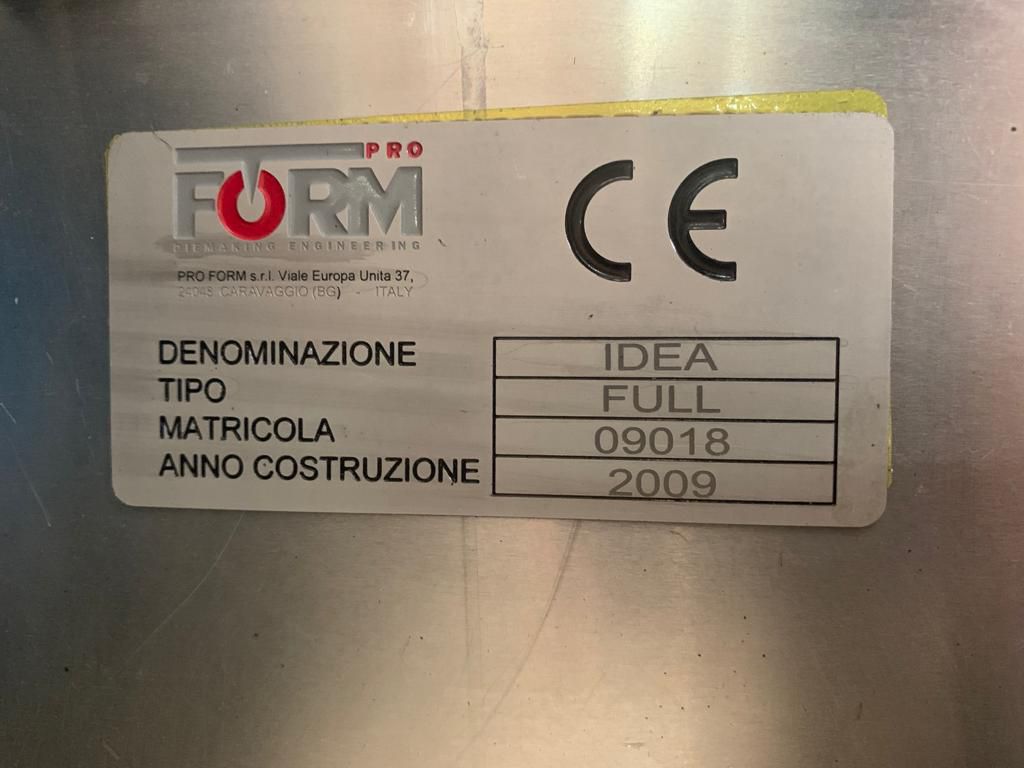

    Brand name
    ServiformIdea
    built in
    2009
