Lasercomb USM 1613 Milling system

Lasercomb USM1613 Counter Cutter for milling  all woodworking jobs, including sandwich dies
Ideal machine for Steel Rule Die-Makers. It was used just only 32 hours ! LIKE NEW!

In principle, the UMS is a universally usable milling machine, so that any material can be milled if required and within the existing technical parameters. However, the machine is specifically designed for the production of Stripping and blanking tools, but can be extend also for Pertinax counter matrices. High precision, convenient operation, network connection with remote maintenance capability, low space requirement, these are the main advantages that speak in favour of the UMS.

A strictly structured user interface guides the user through the parameterization of the process data in a clear form. Easily understandable technology databases guarantee flexibility in configuration and speed in production.

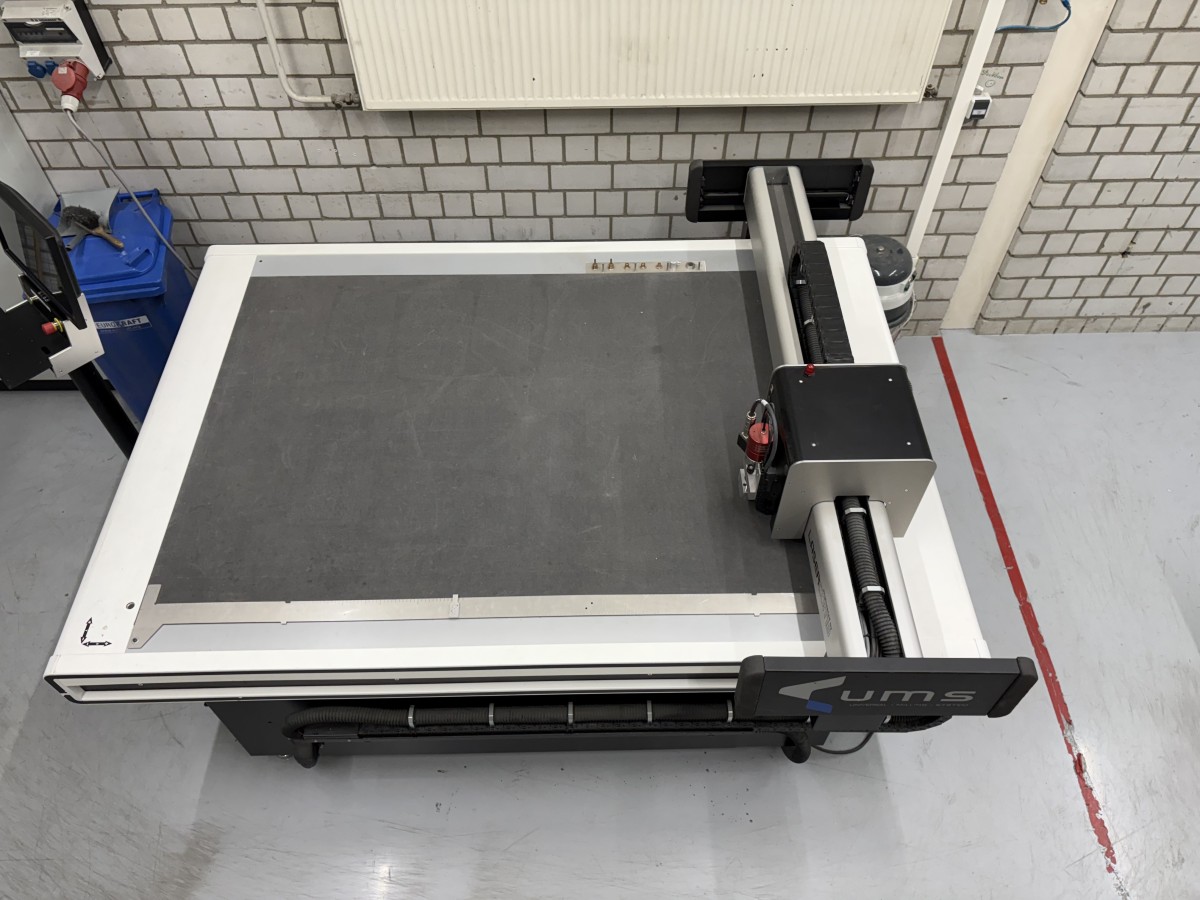

• Vacuum honeycomb table with a working area for milling Pertinax and 1600 x 1300 mm for milling plywood

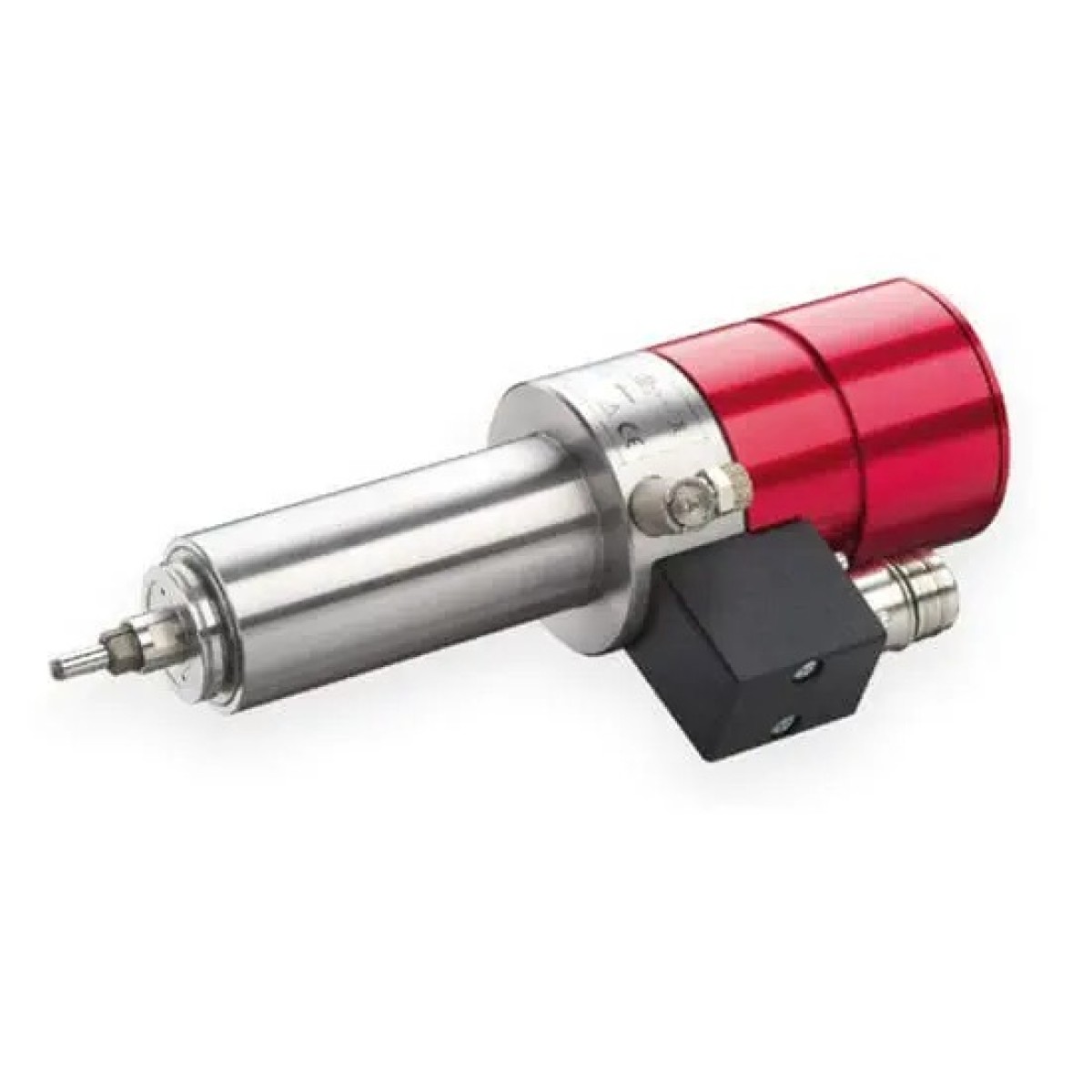

• Sycotec 4041DC Spindle, 60000 rpm,

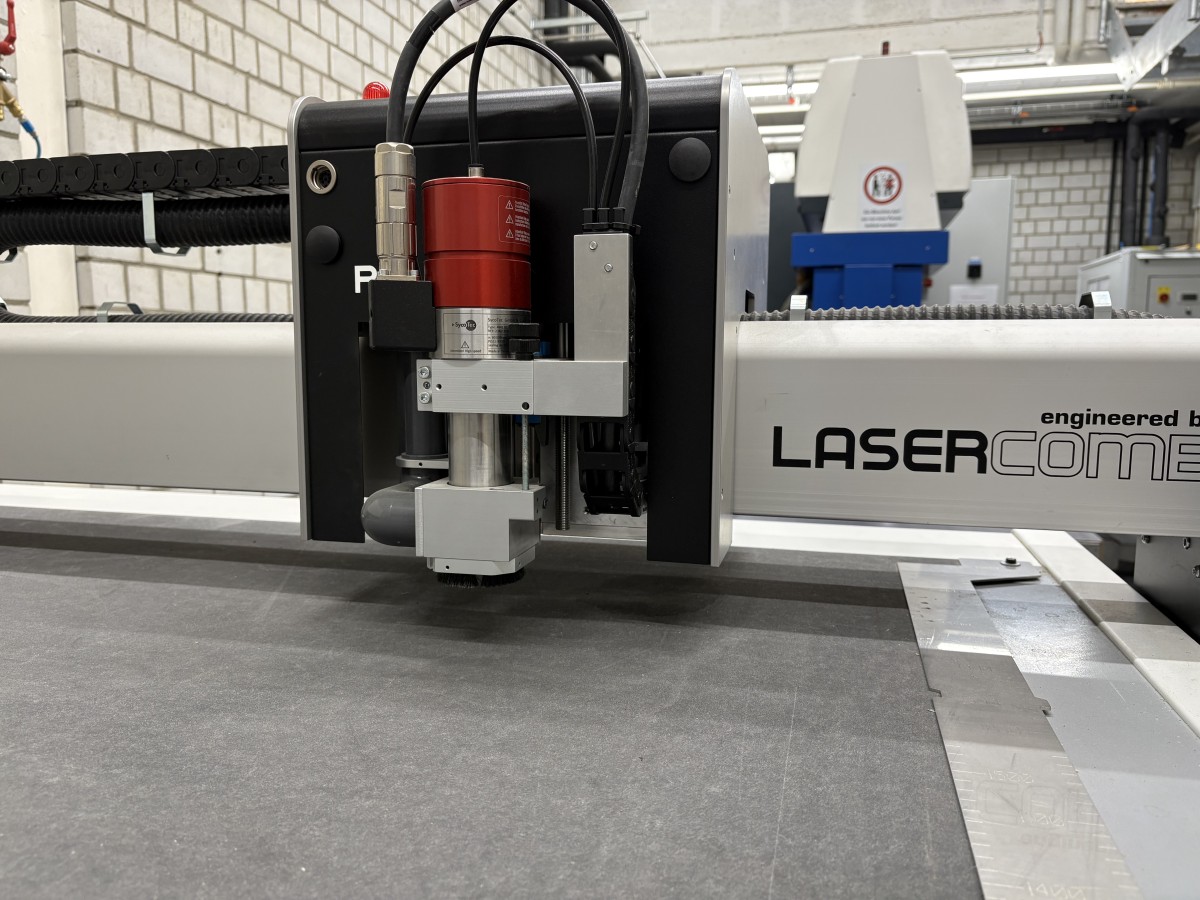

• High-frequency milling spindle with 1kW and pneumatic collet
• Fully automatic tool change.

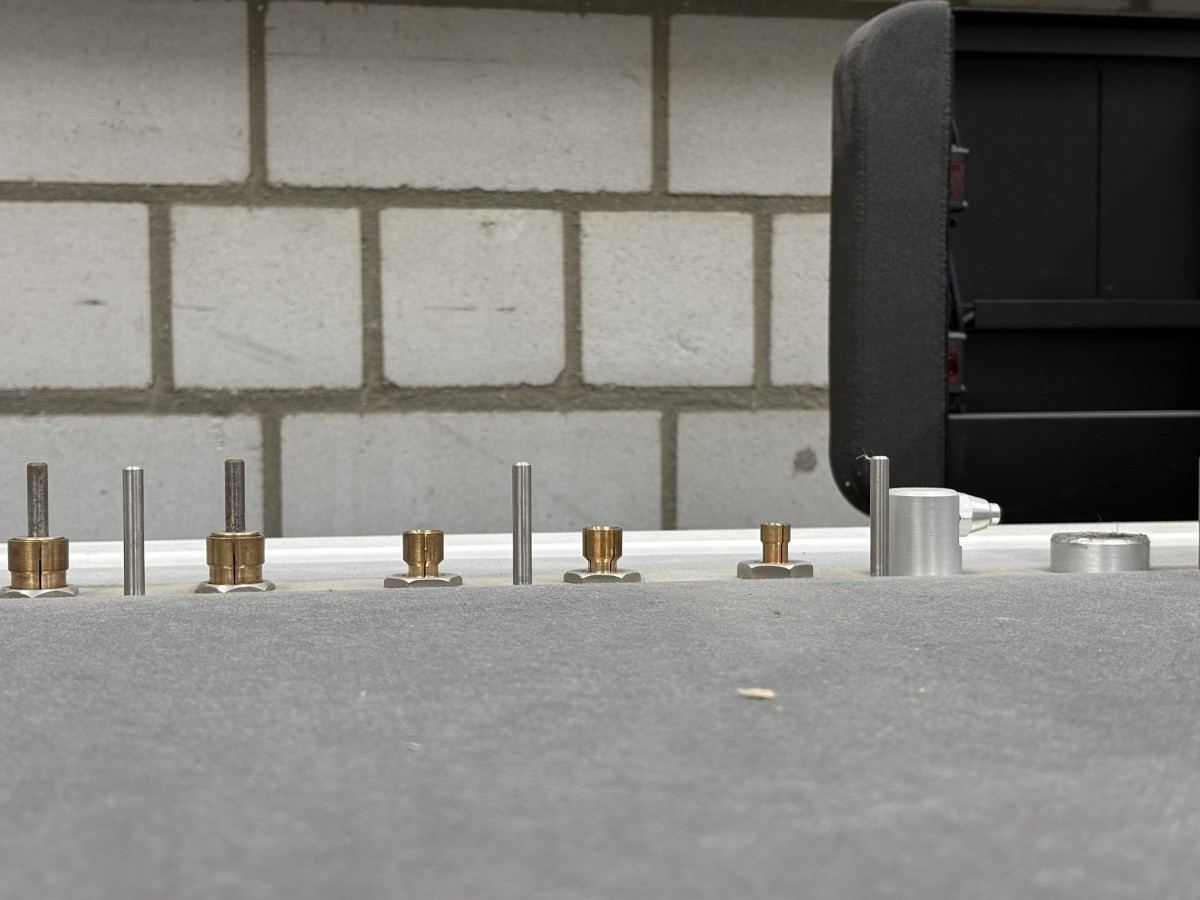

• Tool magazine with 5 positions, tool cleaning, tool measurement.
• Integrated chip extraction.
• Tracked height control with continuous measurement.
• 2 Vacuum pump can be mounted in the base frame or outside.
• Main axes (X-axis; Y-axis) equipped with linear measuring systems.
• Delfin industrial vaccuumcleaner
• Free travel option at the end of processing for easier operation.
• Milling machine / router for steel rule dies
