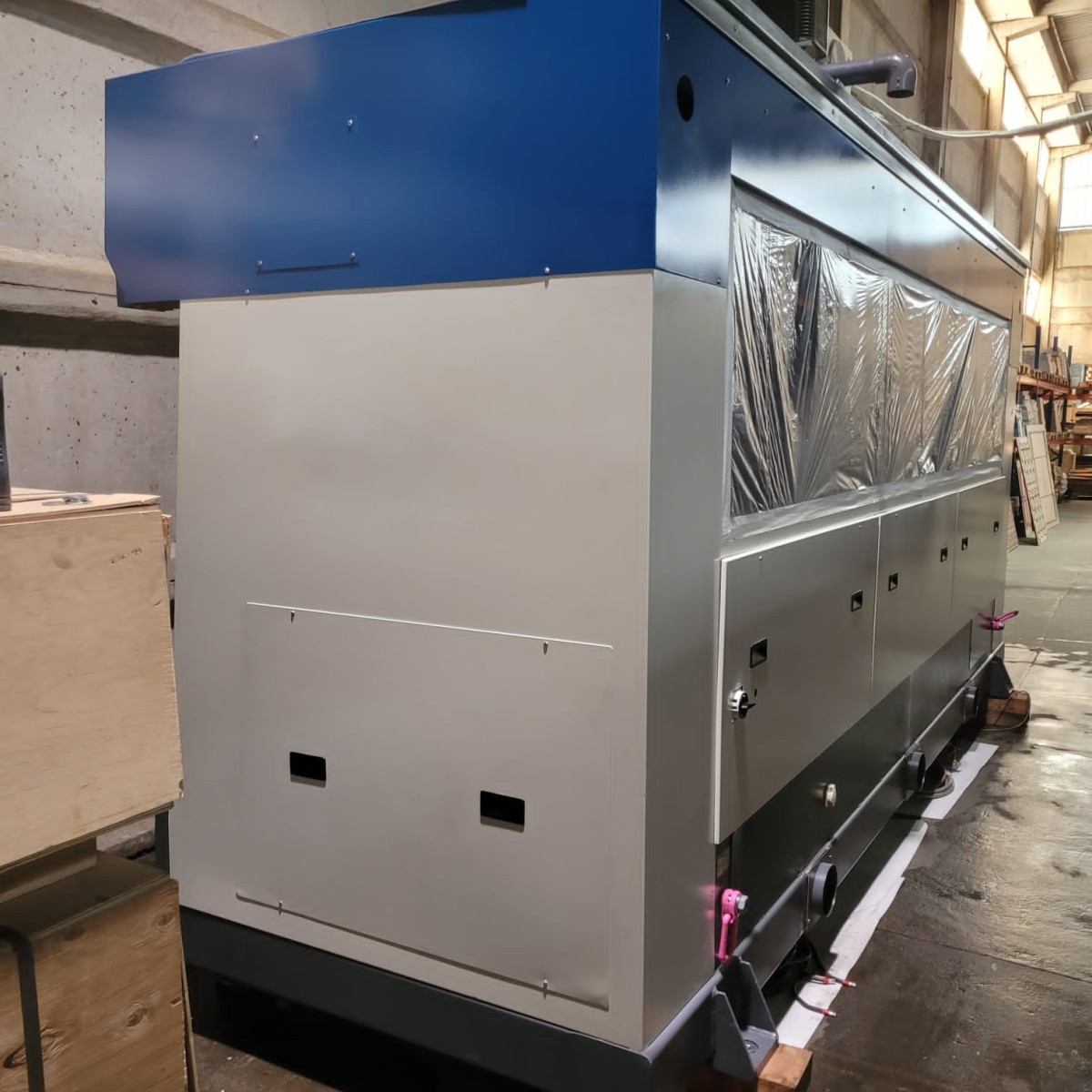

Lasercomb ProRot3000 Co2-laser for rotary dies with DC020

ProRot300, Lasercomb Rotary laser cutting machine, to cut with Co2 laser rotary shells to produce rotary dies. Maschine and Rofin-Sinar laser DC020, completely renewed. Machine located in Brazil

Size         : 3000 mm wide (max. wooden shells 3200 mm)

 Diam.    : Min.  174 mm

                 Max. 696 mm

• Solid welded construction for machine base
• Gantry drive, right and left on the rotary unit
• Linear guidance
• ROD measuring system
• Water recooler with 2 separate cooling circuits for lens and laser source
• Suction for flue gas at the bottom of machine base
• Laser cut in cw or pulse mode
• Touch screen control with graphics screen
• Editable material data base to record cut parameter depending on the material
• LAN connection to transmit data files for machine control by server
• Remote control/ error analysis for internet/ intranet
• Re-entry into cutting programs after power failure
• Quick mount rotary unit
• Pneumatic clamping for rotary supporting discs
• Minimum gas consumption of laser source
• Minimum maintenance effort at laser source and system
• Laser source installed at the side of machine base frame

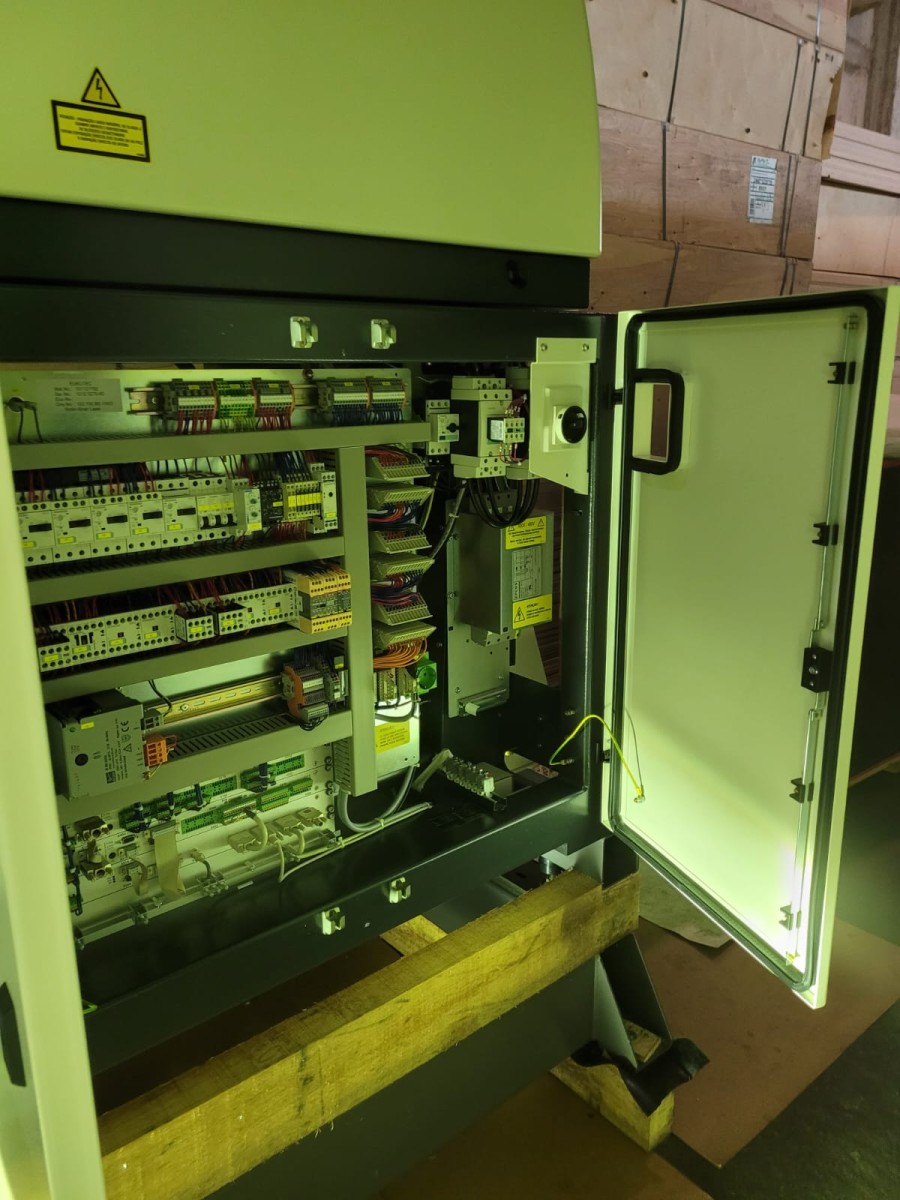

• Electrical cabinet integrated on machine frame
• Safety devices by means of encapsulating cutting area
• Adsorption dryer with activated carbon filter for treatment of oil- and condensate-free compressed air for optimum protection of lenses
• Laser equipped with Fast Sensor
• Laser equipped with ramp generator
